Manual ground cow
Fork length
| Capacity | Kg | 2000 | 3000 | 3000 |
| Min height | mm | 85 | ||
Maximum ground clearance | mm | 200 | ||
| Maximum lifting stroke | mm | 115 | ||

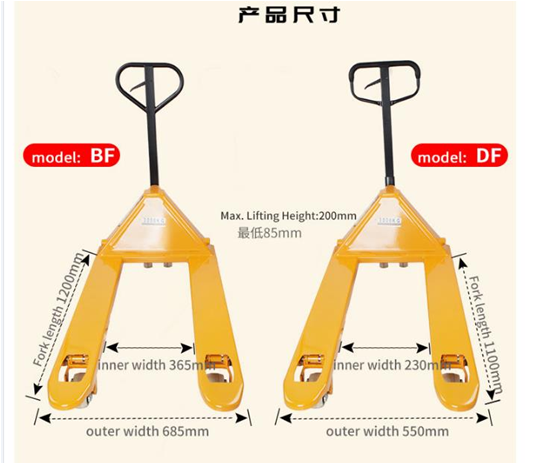

| Outer width of fork | mm | 550/685 | ||
| Inner width of fork | mm | 230/365 | ||
| Fork length | mm | 1100/1200 | ||
| Single fork | mm | 160 | ||
| Thickness of material | mm | 3 | 3.75 | 5 |
| Overall length | mm | 1500/1570 | ||
| Vehicle width | mm | 550/685 | ||
| Overall height | mm | 1230 | ||
| Diameter of piston rod | mm | Φ31.5 | ||
| Bearing wheel | mm | 70*80 | ||
| Steerig wheel | mm | Φ180×50 | ||
| Turning radius | mm | 1266/1336 | ||
| Materian of wheel | Pu/Nylon | Nylon/Iron | ||

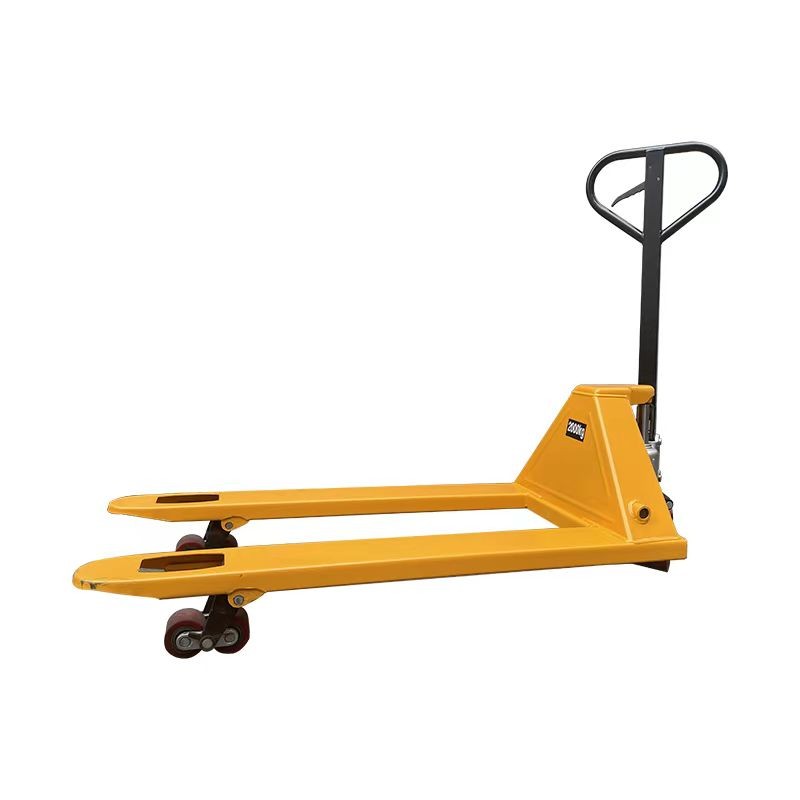

This pallet trucks is designed with additional reinforcement to increase load strength and is robust and hardwearing.
The cylinder is formed in one piece and made of high quality carbon steel, which greatly reduces the possibility of oil leakage and deformation.
We weld by imported robots, so the seams are small and dense, while ensuring strength
The structure is stamped and shaped and treated with a shot-blasted lacquer, which is durable and resistant to fading.
The piston rod is specially treated to eliminate oil leaks and is aesthetically pleasing and durable.
